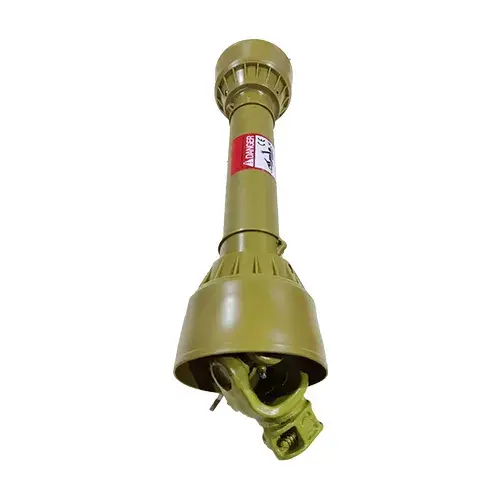

In-Depth Look at PTO Cover / Shields

The Safety Shield also called plastic cover, is an important component in agricultural safety, particularly when using tractors with various implements. Now, in many underdeveloped areas, the penetration rate of safety shield is still low. But with the improvement of modernization of agricultural machinery and the gradual increase of safety awareness, Safety Shield is increasingly valued by the industry. Here are two key functions of using Safety Shields:

Protect Operators: Matters involving people are always the most important ones, aren’t they? As we know, the bare rotating shaft has a very fast rotational speed, which can easily catch clothing hair or limbs. This situation can occur on many implements, such as rotary Mowing and cutting, tillage equipment, baling hay and straw, harvesting implements, manure spreaders, sprayers and dusters. The safety shield can establish a barrier between the operator and PTO shaft.
Protect PTO shaft: The safety shieldcan also help protect the PTO shaft from agricultural debris or environmental dirt, which can cause damage to the PTO shaft. This extends the lifespan of the PTO shaft and reduces the maintenance and replacement costs for farmers or business owners.Isn’t it worth spending some money to extend the lifespan of the PTO shaft?

Different Types of PTO Shaft Safety Shields for Tractors

PTO shaft safety shields are essential for protecting users from the rotating shaft, and they come in several styles. Understanding the options available can help you choose the right one for your tractor and machinery. Here are the most common types of PTO shaft safety shields:

Master Shield: The master shield is a fixed guard attached directly to the tractor at the PTO connection point. It typically covers the PTO stub and the front joint of the drive shaft, offering basic protection.
Full-Coverage Shields: These shields provide complete coverage for the entire PTO shaft. Made from strong materials like plastic or metal, they fully enclose the shaft to prevent contact with moving parts.
Chain Shields: Chain shields offer a more open form of protection. Chains or rods run along the length of the PTO shaft, providing some level of safety by preventing larger objects from getting tangled in the rotating shaft, though they offer less coverage than full shields.
Telescopic Safety Guards: Designed for PTO shafts that extend and retract, telescopic safety guards expand and contract as needed. Typically made from durable, flexible materials like reinforced rubber or hardened plastic, these guards ensure continuous protection as the shaft moves.

Each type of shield offers different levels of protection depending on your needs and the kind of equipment you’re using.

How to Install a PTO Shaft Safety Shield on Your Tractor

Installing a PTO shaft safety shield on your tractor is a straightforward task, but it’s important to follow the steps carefully to ensure it’s done right. Here’s a simple guide to help you through the installation process:

Choose the Right Shield: First, pick a safety shield that’s made specifically for your tractor’s model and PTO system. Make sure the shield fits your PTO shaft’s length and diameter properly.
Position the Shield: Next, line up the safety shield with the PTO shaft. Most shields come in two parts that you’ll need to place around the shaft.
Secure the Shield: Fasten the two halves of the shield around the shaft. This usually involves bolting or clipping them together. Double-check that the shield is tightly secured to prevent it from coming loose while the tractor is in use.
Check for Movement: Spin the PTO shaft by hand to make sure the shield doesn’t interfere with its rotation. The shaft should rotate freely inside the shield without any obstruction.
Attach the Shield to the Tractor: If required, attach one end of the safety shield to the tractor, typically near the PTO stub. Make sure this end is securely fastened.
Test and Adjust: After installation, run a quick test by engaging the PTO. Watch the shaft to ensure it stays within the shielded area while rotating, and make any necessary adjustments.

By following these steps, you can ensure the PTO shaft safety shield is properly installed, providing the necessary protection while operating your tractor.

PTO Shaft Safety Shield Maintenance Tips

Taking good care of the PTO shaft safety shield on your tractor is essential for both safety and durability. Regular maintenance can help prevent accidents and extend the life of your shield. Here are some simple steps to keep your PTO shaft safety shield in top shape:

Regular Inspections: Check the shield often for any signs of wear or damage, such as cracks, dents, or misalignment. These issues can affect the shield’s ability to protect you and your equipment, so keep an eye out for anything that might compromise its strength.
Keep It Clean: Dirt, debris, and grease can build up on the shield, reducing its effectiveness. Clean the shield regularly with a brush or compressed air to remove any residue or foreign materials that could interfere with its function.
Lubricate Moving Parts: If your PTO shaft safety shield has any moving components (like hinges or sliding parts), be sure to lubricate them with the right type of grease. This helps ensure smooth operation and prevents wear on those parts.
Adjust the Shield as Needed: Over time, the shield might need a little adjustment to stay in proper alignment. Make sure it still covers the PTO shaft properly and continues to provide full protection.
Replace When Necessary: If the shield shows serious damage or wear that affects its performance, don’t wait to replace it. A damaged shield is no longer effective in keeping you safe, so replace it as soon as you notice significant issues.

By following these simple maintenance steps, you can help keep your PTO shaft safety shield in good working condition, ensuring your tractor remains safe and efficient for the long term.
