PTO Drive Shafts

PTO Drive Shafts

GET A QUOTE ➔

Applications

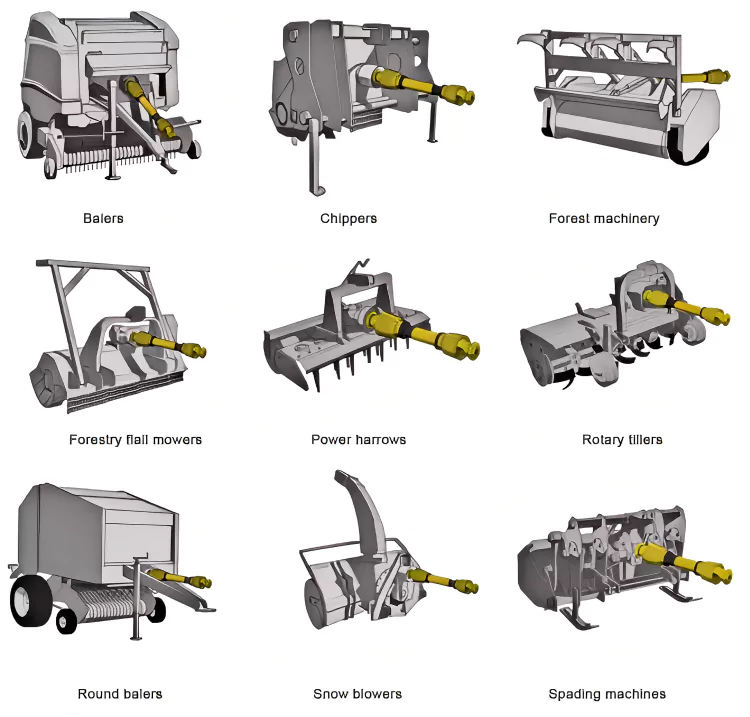

PTO drive shafts are widely used to power various pieces of agricultural machinery, including balers, chippers, forest machinery, forestry flail mowers, power harrows, rotary tillers, round balers, snow blowers, spading machines and more.

Most agricultural equipment requires some form of power-take-off (PTO) system to convert the rotational energy from the trailer’s engine to the implements. As a result, the PTO shaft has become not only a critical component in modern farming operations but also the most common solution for energy transfer. In fact, its standardized design and efficiency have made it indispensable across agricultural industries worldwide.

PTO shafts can be widely used in balers, chippers, forest machinery, forestry flail mowers, power harrows, rotary tillers, round balers, snow blowers, spading machines.

Structure of PTO Shaft

A PTO shaft works by allowing a tractor’s engine to turn at high speed. A PTO shaft consists of a telescoping tube, a universal joint, and yokes. It is usually protected by a plastic shield and a chain. When attached to an implement, the PTO shaft allows the tractor to rotate at two different speeds.

A PTO shaft transfers energy from the tractor’s engine to a hydraulic pump, which moves fluid and powers implements. PTO shafts are more efficient in larger tractors. They can rotate clockwise or counterclockwise, but it’s crucial to standardize the direction to avoid damage. Prolonged reverse rotation can harm both the PTO and the attached implements.

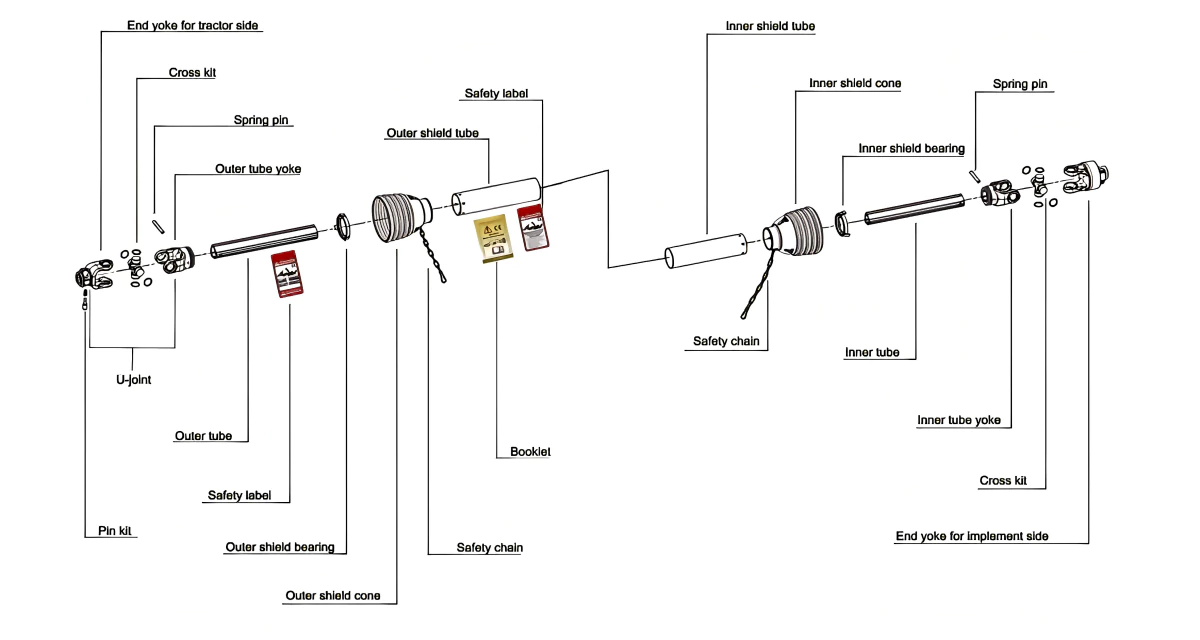

Exploded diagram of a PTO shaft, showing labeled components: end yoke for tractor side, cross kit, spring pin, U-joint, pin kit, outer tube, safety label, outer tube yoke, outer shield bearing, outer shield cone, outer shield tube, booklet, safety chain, inner shield tube, inner shield cone, inner shield bearing, inner tube, inner tube yoke, cross kit, and end yoke for implement side. Each part is clearly marked to illustrate the structure and components of the PTO shaft.

PTO Shaft Category

Welcome to BAIQUAN to purchase PTO drive shafts. You need to know that we divide PTO shafts into 5 types according to the different accessories connected at both ends of the shaft. Below, we will introduce them one by one for you.

standard-pto-shaft

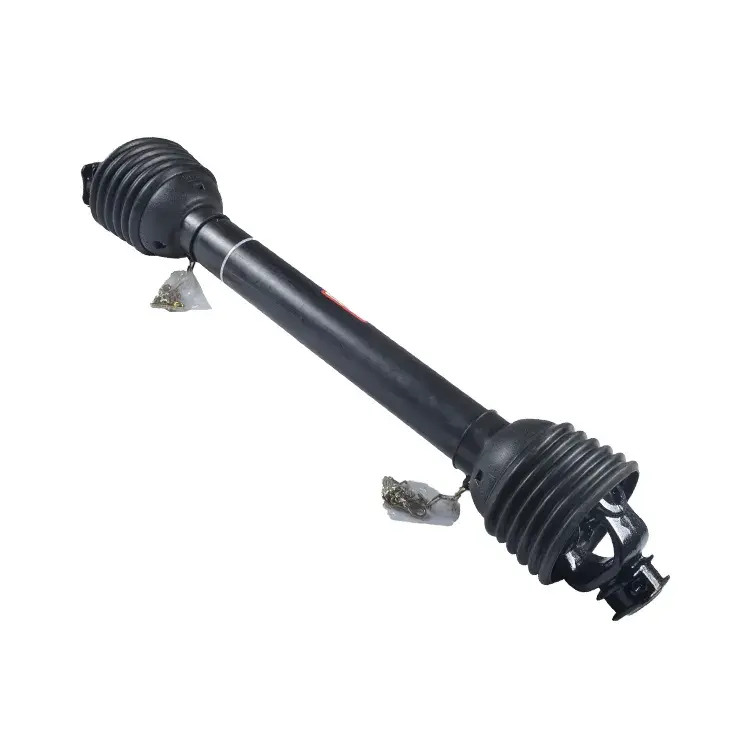

Standard PTO Shaft

A Standard PTO Shaft is designed with 2 yokes at both ends, providing direct and reliable power transfer without any torque limiters. This design offers excellent integrity, making it an ideal choice when large working angles, clutch functionality, and torque limiting features are not required.

PTO Shaft with Shear Bolt Limiter

A PTO Shaft with Shear Bolt Limiter is a type of PTO shaft with one end connected to a shear bolt torque limiter and the other end connected to a yoke. It designed to disconnect the driveline when a certain torque threshold is exceeded, usually caused by overload or a shock load.

PTO-Shaft-with-Shear-Bolt-Limiter
A PTO Shaft with Ratchet Limiter is a type of PTO shaft with one end connected to a ratchet torque limiter or an overrunning clutch

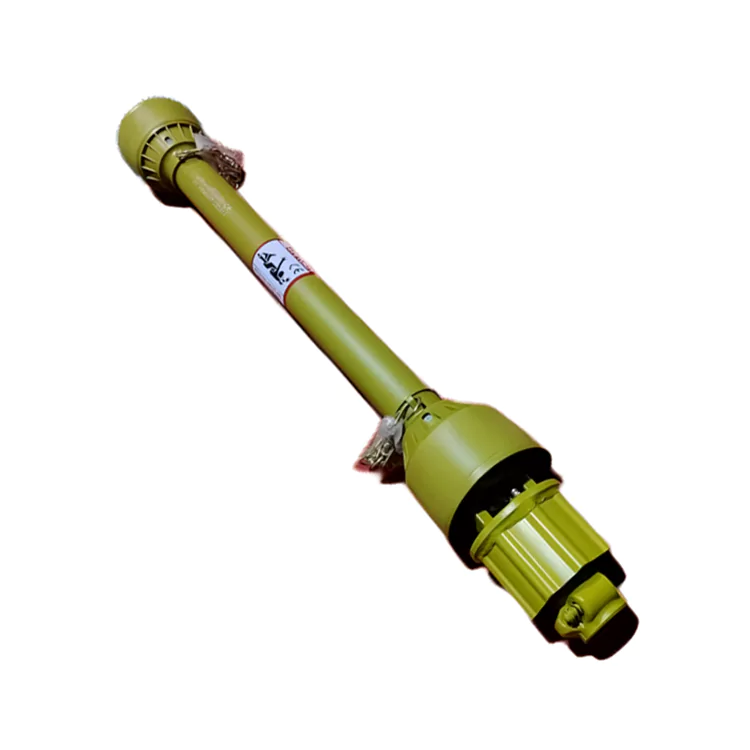

PTO Shaft with Ratchet Limiter

A PTO Shaft with Ratchet Limiter is a type of PTO shaft with one end connected to a ratchet torque limiter or an overrunning clutch, and the other end connected to a yoke. This design interrupts the transmission of power in the event of a torque peak or overload that exceeds the setting.

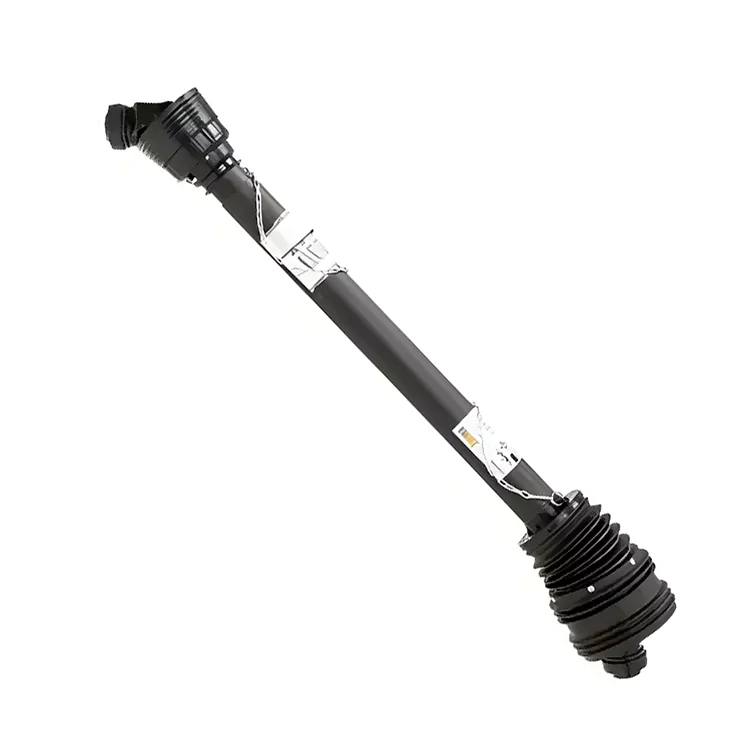

Wide Angle PTO Shaft

A Wide Angle PTO Shaft is a type of PTO shaft with one end connected to a wide angle torque limiter and the other end connected to a yoke. This design allows greater flexibility in operation, making it ideal for machinery like mowers and balers that require frequent turning or complex movements.

The picture is a white background image of a black PTO Shaft with wide angle joint and a cover.
A PTO Shaft with Friction Limiter is a type of PTO shaft with one end connected to a friction torque limiter and the other end connected to a yoke.

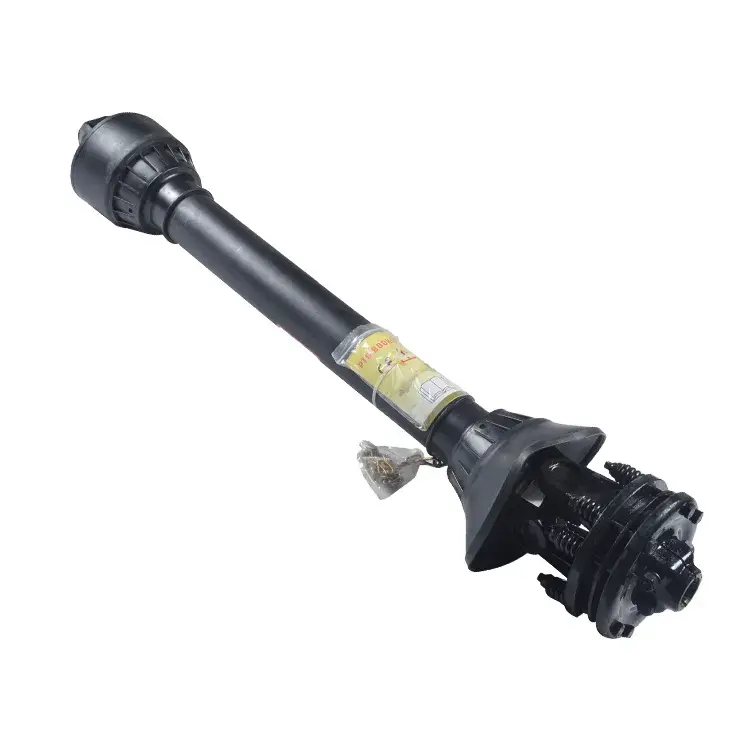

PTO Shaft with Friction Limiter

The PTO Shaft with Friction Limiter is a type of PTO shaft with one end connected to a friction torque limiter and the other end connected to a yoke. It is designed to prevent the tractor from overload, thereby avoiding costly damage.

If you are interested in the above product types or have any technical questions, feel free to contact us. BAIQUAN is a professional PTO shaft manufacturer and supplier in China, offering you the best prices. Moreover, OEM/ODM services are available! The minimum order quantity (MOQ) for PTO shafts is 2 units. For customized packaging, the MOQ is 100 units. Click the button to get in touch with us.

CONTACT NOW ➔

PTO Shaft Details


Function of PTO ShaftDrive Shaft Parts & Power Transmission
Usage of PTO ShaftKinds of Tractors & Farm Implements
Processing Flow of PTO ShaftWorkblank Cutting > Workblank Preparation > Forging Preparation > Turn-milling Machining > Drill Earhole > Boring Earhole > Spline Broaching > Grove Milling > Cutting > Pressure Pipe > Drill Pin > Burring > U-joint Assembly > Driving Shaft assembly > Painting & Marking > Plastic Shield Assembly > Packing > Loading > Delivering
Yoke Types for PTO ShaftDouble push pin, Bolt pins, Split pins, Pushpin, Quick release, Ball attachment, Collar…..
Processing of YokeForging
PTO Shaft Plastic CoverYW; BW; YS; BS; Etc.
Colors of PTO ShaftGreen; Orange; Yellow; Black; Etc.
PTO Shaft SeriesT1-T10; L1-L6; S6-S10; 10HP-150HP with SA, RA, SB, SFF, WA, CV, Etc
Tube Types for PTO ShaftLemon, Triangular, Star, Square, Hexangular, Rectangular, Spline, Special Etc
Processing of PTO TubeCold drawn
Spline Types for PTO Shaft1 1/8″ Z6;1 3/8″ Z6; 1 3/8″ Z21 ;1 3/4″ Z20; 1 3/4″ Z6; 8-38*32*6 8-42*36*7; 8-48*42*8;
MOQNormally 2 units. For customized packing, 100 units.

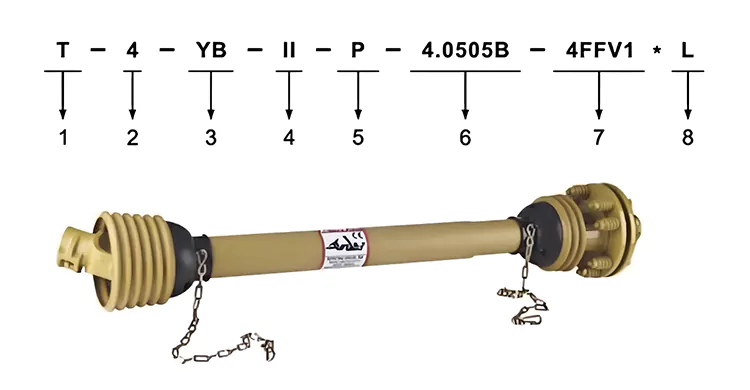

Code Explanation

(This code applies to the models in our PTO shaft catalog ➔)
1: The Types of Tubes (e.g. T, L, S, G)
2: The Series of Cross Kits
3: The Code of Color (e.g. YB=Yellow+Black)
4: The Code of Safety Shield Structure
5: Connection Method: Pin Connected
6: The Tractor End Yokes
7: The Implement End Yokes
8: Minimum Overall Length

This image shows an example of PTO Shaft code: T-4-YB-II-P-4.0505B-4FFV1*L

Measuring length

Before sending us a quotation, please measure the length of the PTO shaft using one of the two methods shown in the picture (cross to cross / end to end), so we can reply to your request more promptly.

This image shows two methods for measuring PTO shaft length

Packaging & Delivery

The picture shows many finished pto shafts neatly placed in wooden boxes for sea transportation
wooden crate packing
The picture shows the pto axes arranged together in independent plastic bags
wooden crate packing with individual plastic bags
The picture shows the pto shafts packed in independent paper boxes, neatly arranged together
individual carton packing
The picture shows the pto shaft placed in a separate cardboard box and covered with a separate plastic bag
Individual Plastic Bag + Carton Packaging
The picture shows the neatly arranged pto shafts with covers in a wooden crate
wooden crate with bulk plastic bag packaging
The picture shows black pto shafts with covers neatly arranged in a wooden box lined with plastic
wooden crate with bulk plastic bag packaging
The picture shows black pto shafts with independent plastic bags neatly arranged together
individual plastic bag
The picture shows yellow pto yokes with independent plastic bags placed in wooden boxes lined with plastic bags
Individual Plastic Bag

Customizable Packaging Options

  • Individual / Bulk / No Plastic Bag
  • Individual / Bulk / No Carton
  • Wooden Crate
  • Bulk Packaging
  • Any packaging requirements you have

Provide Delivery Based On Your Requirements

  • Bulk orders ship by sea; samples shipp via courier
  • Shipped by sea from Shanghai Port / Ningbo Port
  • Place of origin: Hangzhou, Zhejiang
  • We strive to meet your delivery time requirements
  • Offering a 1-year warranty from the date of delivery
The picture shows the warehouse packing process of BAIQUAN factory
crating
The picture shows the scene of wooden boxes stacked together in the delivery warehouse of BAIQUAN factory waiting for shipment
Prepare for shipment
The picture shows the scene of workers using forklifts to load wooden boxes into containers
container loading
The picture shows the scene where the container is already full and the truck is ready to depart
Transport to the port

Safe Working Conditions

At BAIQUAN, safety is a top priority in the design and construction of our PTO shafts, all of which meet ISO standards and EU safety regulations. Each shaft comes with a “Use and Maintenance” manual and safety labels to ensure proper use. Customers may inform BAIQUAN of the destination country to receive the appropriate manuals and labels.

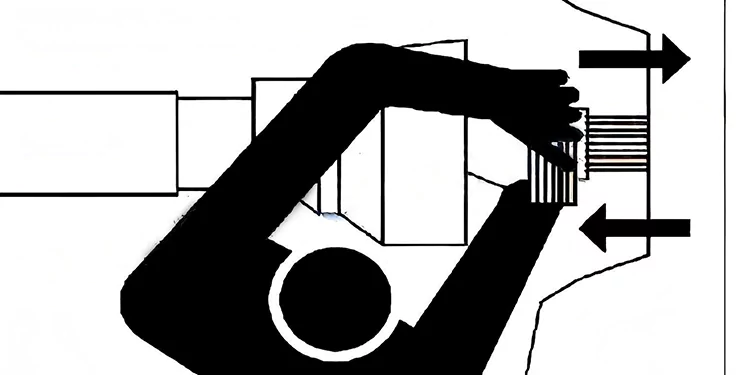

Ensure that all driveline, tractor and implement shields are functional and in place before operation. Damaged or missing parts must be replaced with original spare parts.
Ensure that all driveline, tractor and implement shields are functional and in place before operation. Damaged or missing parts must be replaced with original spare parts.

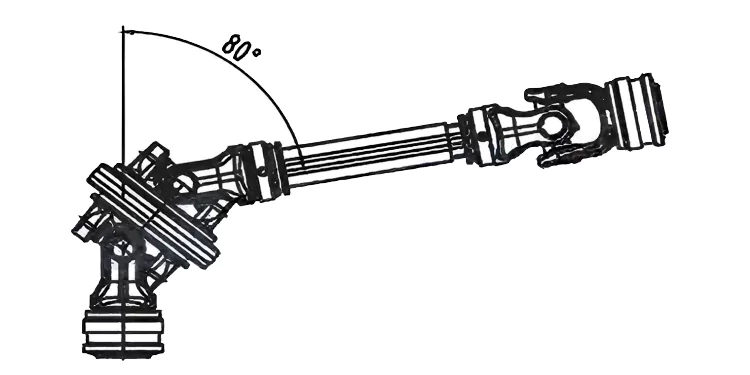

The PTO drive shaft joint does not operate continuously with an angle close to 80°, but only for brief periods (steering)
The PTO drive shaft joint does not operate continuously with an angle close to 80°, but only for brief periods.
Be careful not to get caught up in the machine
DANGER! Rotating driveline-contact can cause death. Keep away! Do not wear loose clothing, jewelry or hair that could become entangled with the driveline.

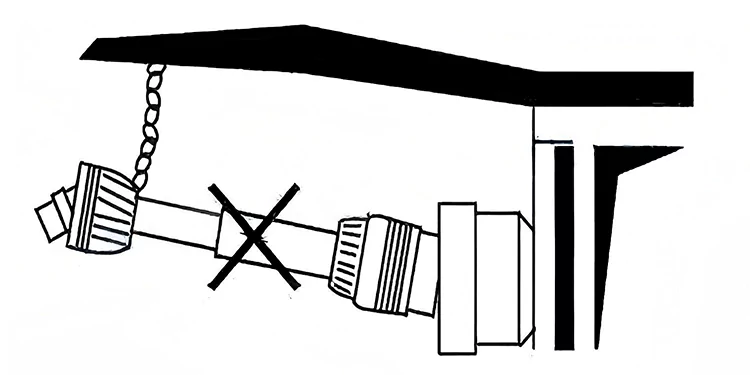

Never use the safety chains to support the driveline for storage
Never use the safety chains to support the driveline for storage. Always use the support on the implement.

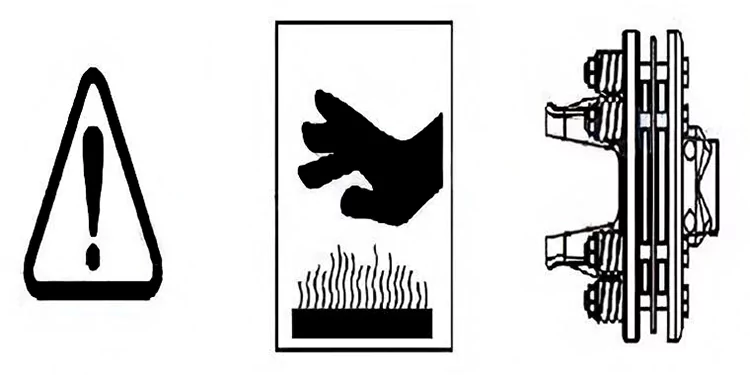

Do not touch the Friction clutches
Friction clutches may become hot dring use. Do not touch! Keep the area around the friction clutch clear of any material which could catch fire and avoid prolonged slipping.
